Name: FDD8424H
Brand: onsemi
SKU: FDD8424H
Price: 1.30 USD
Availability: InStock

REF: FDD8424H onsemi

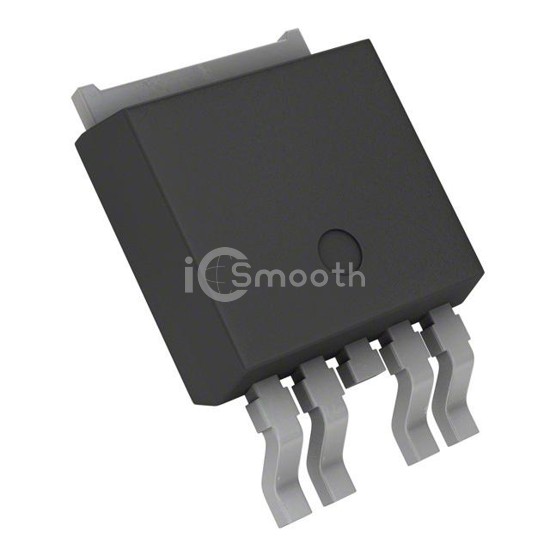

FDD8424H

MOSFET N/P-CH 40V 9A/6.5A DPAK

FDD8424H is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 40V 9A/6.5A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, power - max 1.3W.

Datasheet Request a Quote

In Stock: 5,830

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	9A, 6.5A
Rds On (Max) @ Id, Vgs	24mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 20V
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	TO-252 (DPAK)
