Name: FDD3510H
Brand: onsemi
SKU: FDD3510H
Price: 1.25 USD
Availability: InStock

REF: FDD3510H onsemi

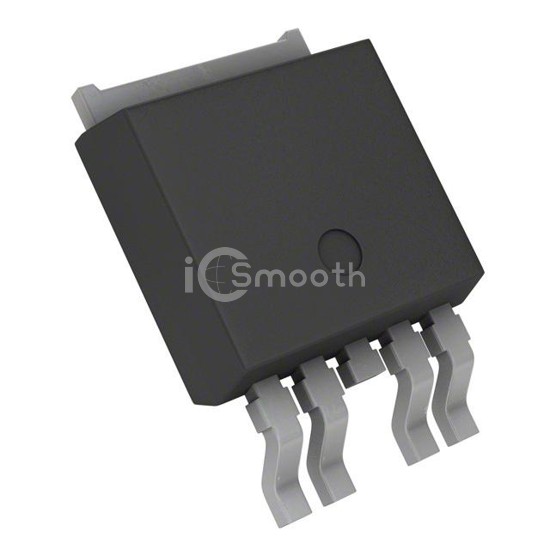

FDD3510H

MOSFET N/P-CH 80V 4.3/2.8A TO252

FDD3510H is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 80V 4.3/2.8A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, power - max 1.3W.

Datasheet Request a Quote

In Stock: 2,911

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel, Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	4.3A, 2.8A
Rds On (Max) @ Id, Vgs	80mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	800pF @ 40V
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	TO-252 (DPAK)
