Name: EFC2K102NUZTDG
Brand: onsemi
SKU: EFC2K102NUZTDG
Price: 0.96 USD
Availability: InStock

REF: EFC2K102NUZTDG onsemi

EFC2K102NUZTDG

DUAL N-CHANNEL POWER MOSFET 12V,

EFC2K102NUZTDG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. DUAL N-CHANNEL POWER MOSFET 12V,. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 10-SMD, No Lead, power - max 3.1W (Ta).

Datasheet Request a Quote

In Stock: 2,521

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	33A (Ta)
Rds On (Max) @ Id, Vgs	2.65mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	42nC @ 3.8V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	3.1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

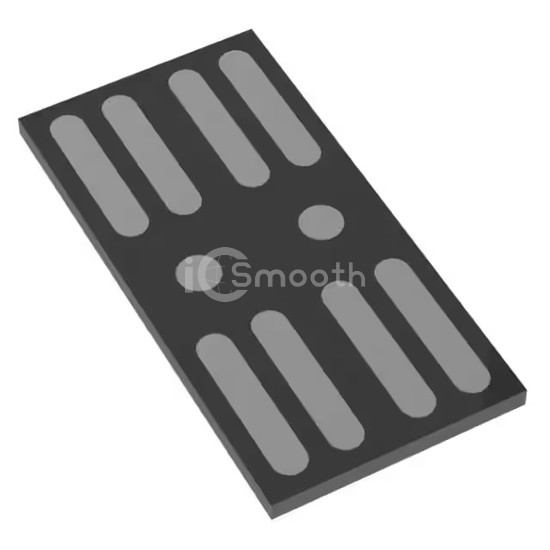

Package / Case	10-SMD, No Lead
Supplier Device Package	10-WLCSP (2.98x1.49)
