PSMN013-40VLDX

In Stock: 470

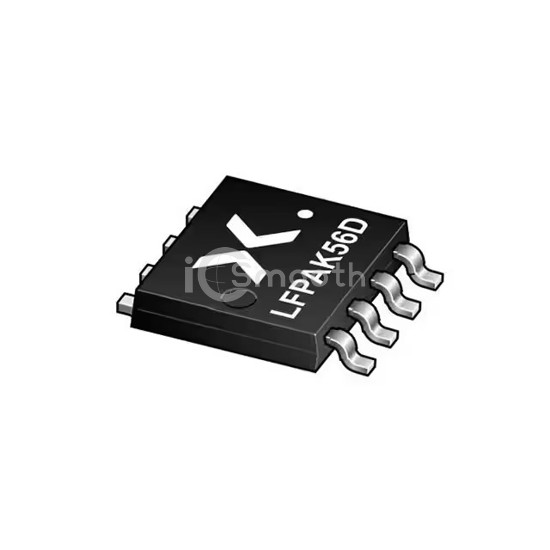

PSMN013-40VLDX - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Arrays
REF: PSMN013-40VLDX Nexperia USA Inc.
PSMN013-40VLDX

Nexperia USA Inc.

PSMN013-40VLD - DUAL N-CHANNEL 4

PSMN013-40VLDX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. PSMN013-40VLD - DUAL N-CHANNEL 4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56, power - max 46W (Ta).

Datasheet Request a Quote

In Stock: 470

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C42A (Ta)
Rds On (Max) @ Id, Vgs13.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs19.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1160pF @ 25V
Power - Max46W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-1205, 8-LFPAK56
Supplier Device PackageLFPAK56D
