PMDXB950UPELZ

In Stock: 25,643

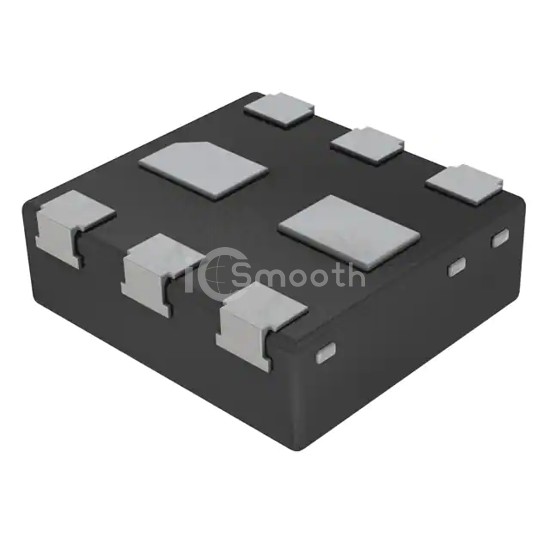

PMDXB950UPELZ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Arrays
REF: PMDXB950UPELZ Nexperia USA Inc.
PMDXB950UPELZ

Nexperia USA Inc.

20 V, DUAL P-CHANNEL TRENCH MOSF

PMDXB950UPELZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. 20 V, DUAL P-CHANNEL TRENCH MOSF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-XFDFN Exposed Pad, power - max 380mW.

Datasheet Request a Quote

In Stock: 25,643

Specifications

14 parameters
Product StatusActive
FET Type2 P-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C500mA
Rds On (Max) @ Id, Vgs1.4Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds43pF @ 10V
Power - Max380mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFDFN Exposed Pad
Supplier Device PackageDFN1010B-6
