PMDPB56XNEAX

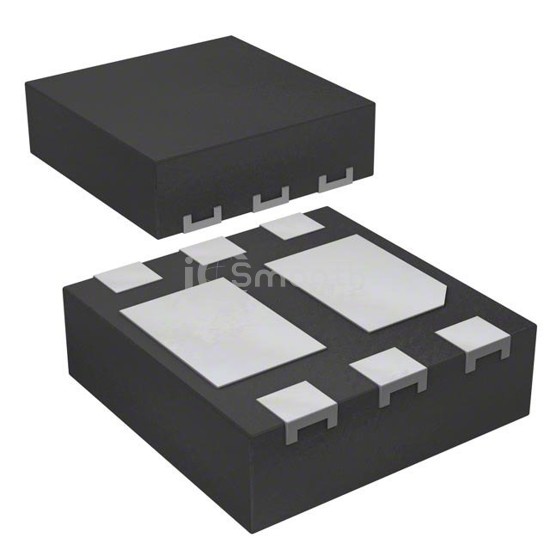

MOSFET 2N-CH 30V 3.1A DFN2020D-6

PMDPB56XNEAX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. MOSFET 2N-CH 30V 3.1A DFN2020D-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 485mW (Ta).

Datasheet Request a Quote

In Stock: 292,581

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta)
Rds On (Max) @ Id, Vgs	72mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id	1.25V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	256pF @ 15V
Power - Max	485mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UDFN Exposed Pad
Supplier Device Package	DFN2020D-6
