Name: PMCXB1000UEZ
Brand: Nexperia USA Inc.
SKU: PMCXB1000UEZ
Price: 0.53 USD
Availability: InStock

REF: PMCXB1000UEZ Nexperia USA Inc.

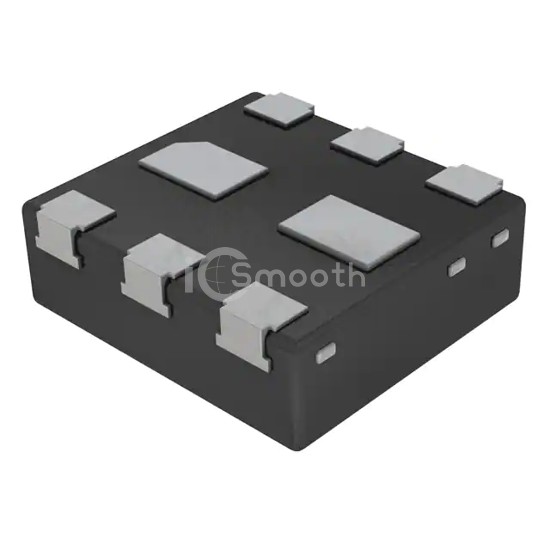

PMCXB1000UEZ

MOSFET N/P-CH 30V DFN1010B-6

PMCXB1000UEZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. MOSFET N/P-CH 30V DFN1010B-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-XFDFN Exposed Pad, power - max 285mW (Ta).

Datasheet Request a Quote

In Stock: 857

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel Complementary
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	590mA (Ta), 410mA (Ta)
Rds On (Max) @ Id, Vgs	670mOhm @ 590mA, 4.5V, 1.4Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA

Gate Charge (Qg) (Max) @ Vgs	1.05nC @ 4.5V, 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	30.3pF @ 15V, 43.2pF @ 15V
Power - Max	285mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	DFN1010B-6
