Name: NX6008NBKSX
Brand: Nexperia USA Inc.
SKU: NX6008NBKSX
Price: 0.39 USD
Availability: InStock

REF: NX6008NBKSX Nexperia USA Inc.

NX6008NBKSX

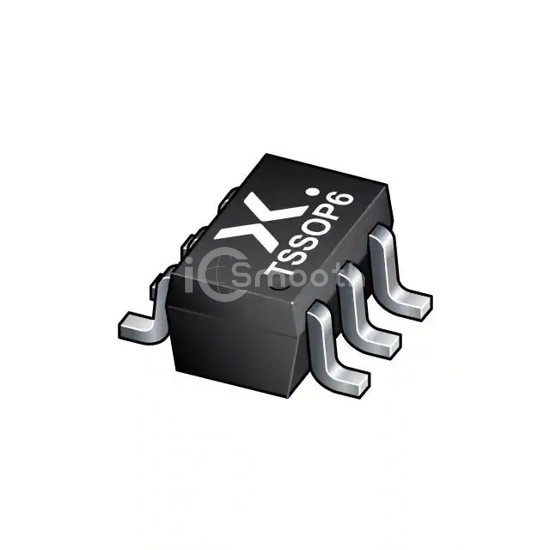

NX6008NBKS/SOT363/SC-88

NX6008NBKSX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. NX6008NBKS/SOT363/SC-88. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363, power - max 260mW (Ta), 1.3W (Tc).

Datasheet Request a Quote

In Stock: 11

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	220mA (Ta)
Rds On (Max) @ Id, Vgs	2.7Ohm @ 300mA, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA

Gate Charge (Qg) (Max) @ Vgs	0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	27pF @ 30V
Power - Max	260mW (Ta), 1.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	6-TSSOP
