Name: BUK9V13-40HX
Brand: Nexperia USA Inc.
SKU: BUK9V13-40HX
Price: 1.46 USD
Availability: InStock

REF: BUK9V13-40HX Nexperia USA Inc.

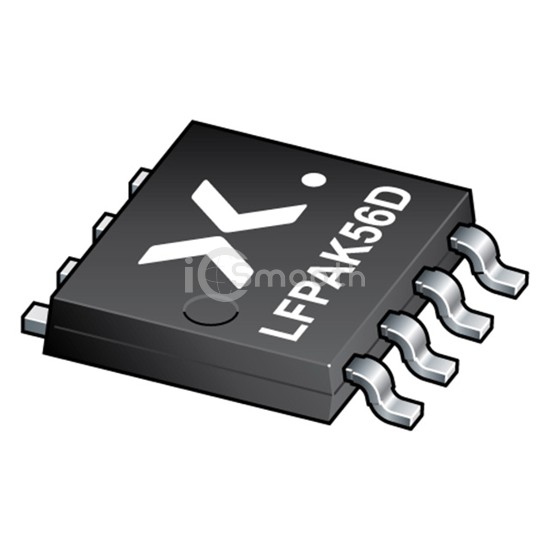

BUK9V13-40HX

BUK9V13-40H - DUAL N-CHANNEL 40

BUK9V13-40HX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. BUK9V13-40H - DUAL N-CHANNEL 40. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56, power - max 46W (Ta).

Datasheet Request a Quote

In Stock: 9,380

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	42A (Ta)
Rds On (Max) @ Id, Vgs	13.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	19.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1160pF @ 25V
Power - Max	46W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-1205, 8-LFPAK56
Supplier Device Package	LFPAK56D
