BUK9K29-100E,115

In Stock: 3,188
BUK9K29-100E,115 - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Arrays
REF: BUK9K29-100E,115 Nexperia USA Inc.
BUK9K29-100E,115

Nexperia USA Inc.

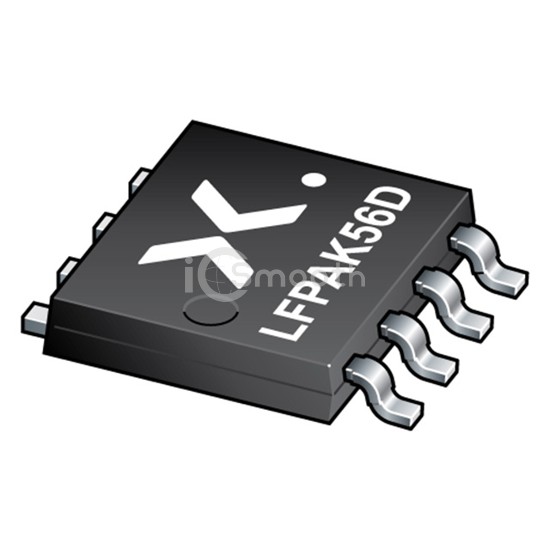

MOSFET 2N-CH 100V 30A LFPAK56D

BUK9K29-100E,115 is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. MOSFET 2N-CH 100V 30A LFPAK56D. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56, power - max 68W.

Datasheet Request a Quote

In Stock: 3,188

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C30A
Rds On (Max) @ Id, Vgs27mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs54nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds3491pF @ 25V
Power - Max68W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-1205, 8-LFPAK56
Supplier Device PackageLFPAK56D
