Name: BUK9K20-80EX
Brand: Nexperia USA Inc.
SKU: BUK9K20-80EX
Price: 1.88 USD
Availability: InStock

REF: BUK9K20-80EX Nexperia USA Inc.

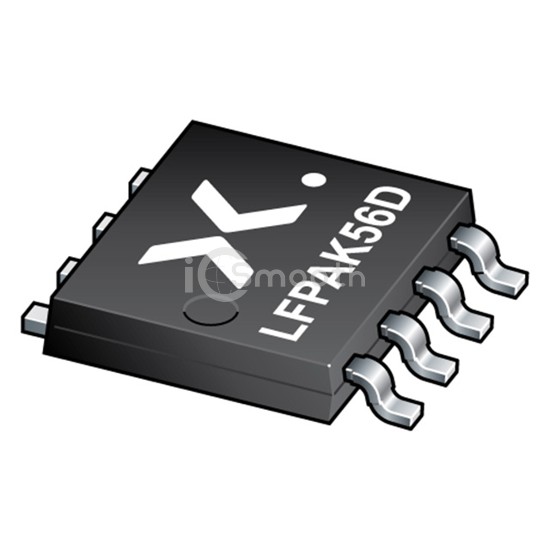

BUK9K20-80EX

MOSFET 2 N-CH 80V 23A LFPAK56D

BUK9K20-80EX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. MOSFET 2 N-CH 80V 23A LFPAK56D. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56, power - max 68W.

Datasheet Request a Quote

In Stock: 7,471

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	23A (Ta)
Rds On (Max) @ Id, Vgs	17mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.1V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	25.5nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	3462pF @ 25V
Power - Max	68W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-1205, 8-LFPAK56
Supplier Device Package	LFPAK56D
