BUK7V4R2-40HX

In Stock: 6,741

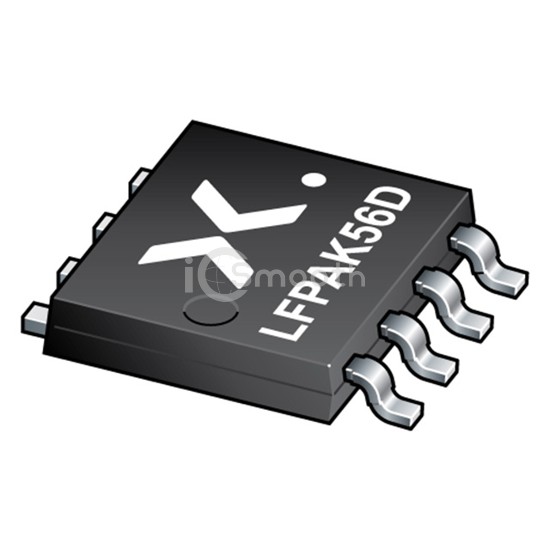

BUK7V4R2-40HX - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Arrays
REF: BUK7V4R2-40HX Nexperia USA Inc.
BUK7V4R2-40HX

Nexperia USA Inc.

BUK7V4R2-40H - DUAL N-CHANNEL 40

BUK7V4R2-40HX is a Transistors - FETs, MOSFETs - Arrays manufactured by Nexperia USA Inc.. BUK7V4R2-40H - DUAL N-CHANNEL 40. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56, power - max 85W (Ta).

Datasheet Request a Quote

In Stock: 6,741

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C98A (Ta)
Rds On (Max) @ Id, Vgs4.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs37nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2590pF @ 25V
Power - Max85W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-1205, 8-LFPAK56
Supplier Device PackageLFPAK56D
