Name: APTC60HM83FT2G
Brand: Microsemi Corporation
SKU: APTC60HM83FT2G
Availability: InStock

REF: APTC60HM83FT2G Microsemi Corporation

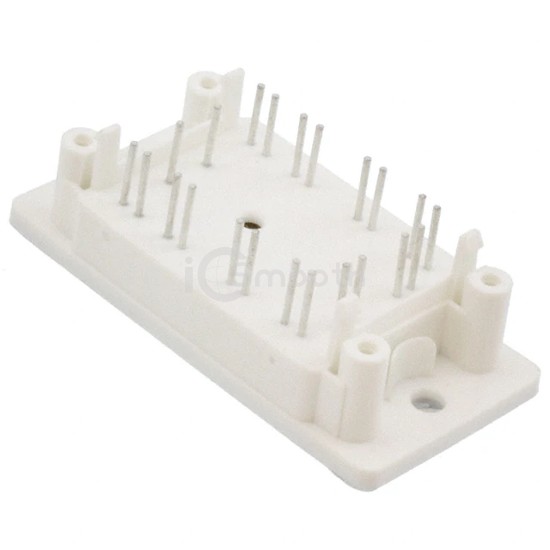

APTC60HM83FT2G

MOSFET 2N-CH 600V 36A MODULE

APTC60HM83FT2G is a Transistors - FETs, MOSFETs - Arrays manufactured by Microsemi Corporation. MOSFET 2N-CH 600V 36A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 250W.

Datasheet Request a Quote

In Stock: 6,788

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	36A
Rds On (Max) @ Id, Vgs	83mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	5V @ 3mA

Gate Charge (Qg) (Max) @ Vgs	255nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	7290pF @ 25V
Power - Max	250W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
