Name: APTC60AM242G
Brand: Microsemi Corporation
SKU: APTC60AM242G
Availability: InStock

REF: APTC60AM242G Microsemi Corporation

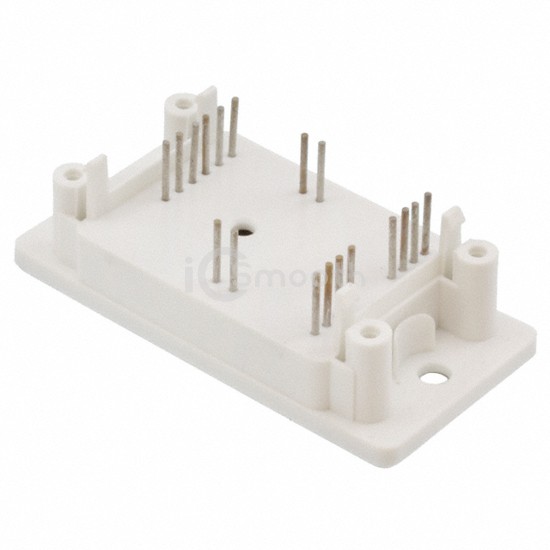

APTC60AM242G

MOSFET 2N-CH 600V 95A SP2

APTC60AM242G is a Transistors - FETs, MOSFETs - Arrays manufactured by Microsemi Corporation. MOSFET 2N-CH 600V 95A SP2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 462W.

Datasheet Request a Quote

In Stock: 5,854

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	95A
Rds On (Max) @ Id, Vgs	24mOhm @ 47.5A, 10V
Vgs(th) (Max) @ Id	3.9V @ 5mA

Gate Charge (Qg) (Max) @ Vgs	300nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	14400pF @ 25V
Power - Max	462W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
