Name: SIX3439K-TP
Brand: Micro Commercial Co
SKU: SIX3439K-TP
Price: 0.45 USD
Availability: InStock

REF: SIX3439K-TP Micro Commercial Co

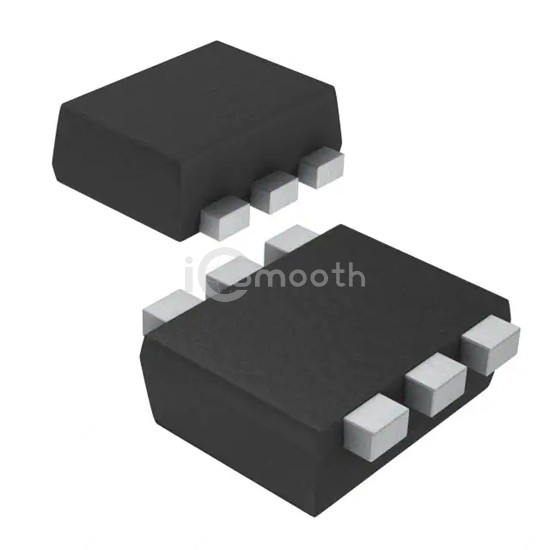

SIX3439K-TP

N/P-CHANNELMOSFETSOT-563

SIX3439K-TP is a Transistors - FETs, MOSFETs - Arrays manufactured by Micro Commercial Co. N/P-CHANNELMOSFETSOT-563. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 7,745

Specifications

14 parameters

Product Status	Not For New Designs
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	750mA, 660mA
Rds On (Max) @ Id, Vgs	380mOhm @ 650mA, 4.5V, 520mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA, 1.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	120pF @ 16V, 170pF @ 16V
Power - Max	-
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
