MCCD2004-TP

In Stock: 5,458

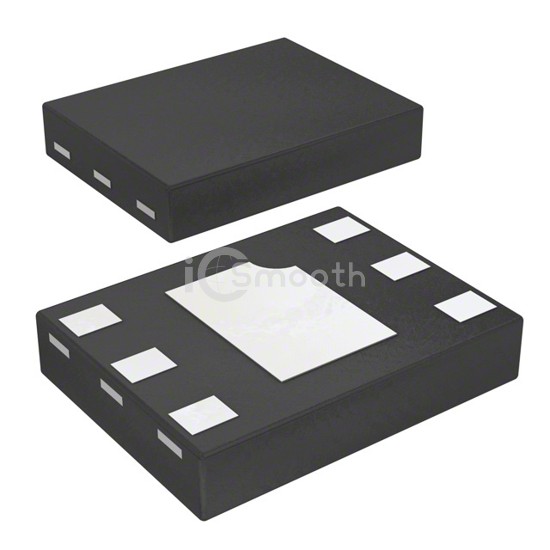

MCCD2004-TP - Micro Commercial Co - Transistors - FETs, MOSFETs - Arrays
REF: MCCD2004-TP Micro Commercial Co
MCCD2004-TP

Micro Commercial Co

MOSFET 2N-CH 20V 10A

MCCD2004-TP is a Transistors - FETs, MOSFETs - Arrays manufactured by Micro Commercial Co. MOSFET 2N-CH 20V 10A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,458

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs10mOhm @ 8A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1955pF @ 10V
Power - Max-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device PackageDFN2030-6
