Name: 2N7002V-TP
Brand: Micro Commercial Co
SKU: 2N7002V-TP
Availability: InStock

REF: 2N7002V-TP Micro Commercial Co

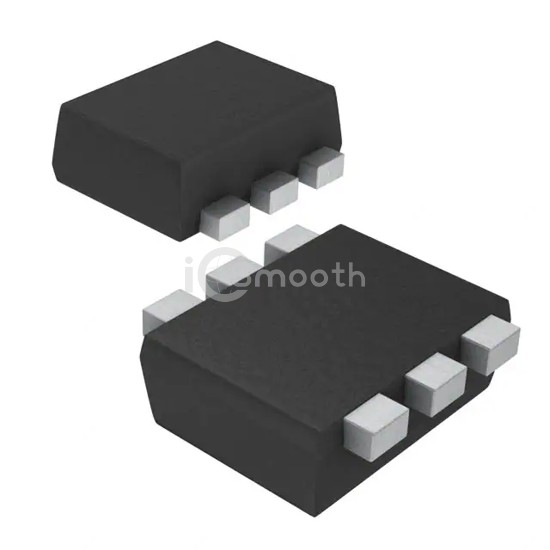

2N7002V-TP

MOSFET 2N-CH 60V 0.28A SOT-563

2N7002V-TP is a Transistors - FETs, MOSFETs - Arrays manufactured by Micro Commercial Co. MOSFET 2N-CH 60V 0.28A SOT-563. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 150mW.

Datasheet Request a Quote

In Stock: 2,565

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	280mA
Rds On (Max) @ Id, Vgs	2Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Power - Max	150mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
