2N7002KDW-TP

In Stock: 9,865

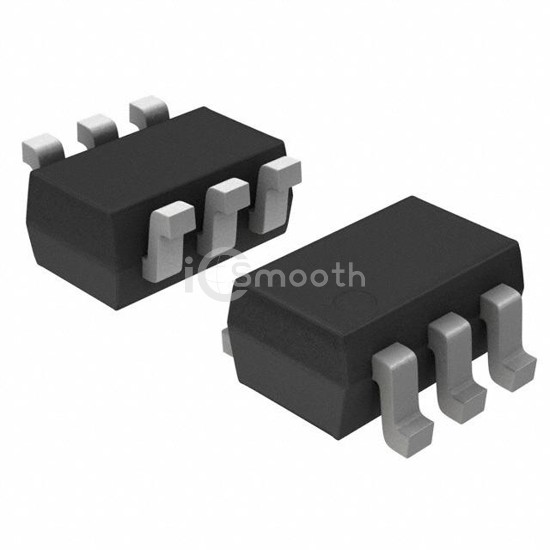

2N7002KDW-TP - Micro Commercial Co - Transistors - FETs, MOSFETs - Arrays
REF: 2N7002KDW-TP Micro Commercial Co
2N7002KDW-TP

Micro Commercial Co

N-CHANNEL,MOSFETS,SOT-363 PACKAG

2N7002KDW-TP is a Transistors - FETs, MOSFETs - Arrays manufactured by Micro Commercial Co. N-CHANNEL,MOSFETS,SOT-363 PACKAG. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case 6-TSSOP, SC-88, SOT-363, power - max 150mW.

Datasheet Request a Quote

In Stock: 9,865

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C340mA
Rds On (Max) @ Id, Vgs5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds40pF @ 10V
Power - Max150mW
Operating Temperature-55°C ~ 150°C
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSOT-363
