Name: SD5001N PDIP 16L
Brand: Linear Integrated Systems, Inc.
SKU: SD5001N PDIP 16L
Price: 4.63 USD
Availability: InStock

REF: SD5001N PDIP 16L Linear Integrated Systems, Inc.

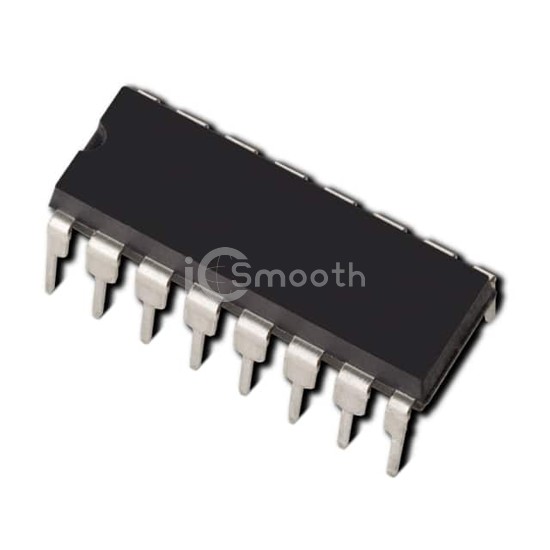

SD5001N PDIP 16L

Linear Integrated Systems, Inc.

QUAD HIGH SPEED N-CHANNEL LATERA

SD5001N PDIP 16L is a Transistors - FETs, MOSFETs - Arrays manufactured by Linear Integrated Systems, Inc.. QUAD HIGH SPEED N-CHANNEL LATERA. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 16-DIP (0.300", 7.62mm), power - max 500mW (Ta).

Datasheet Request a Quote

In Stock: 7,828

Specifications

14 parameters

Product Status	Active
FET Type	4 N-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	10V
Current - Continuous Drain (Id) @ 25°C	50mA (Ta)
Rds On (Max) @ Id, Vgs	70Ohm @ 1mA, 5V
Vgs(th) (Max) @ Id	1.5V @ 1µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
