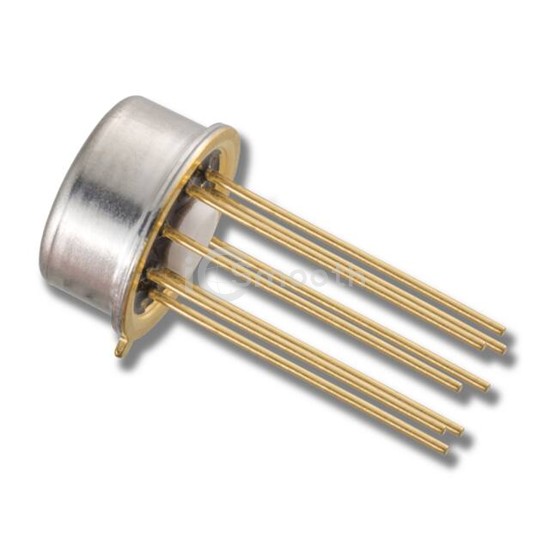

Name: 3N190 TO-78 7L
Brand: Linear Integrated Systems, Inc.
SKU: 3N190 TO-78 7L
Price: 12.43 USD
Availability: InStock

REF: 3N190 TO-78 7L Linear Integrated Systems, Inc.

3N190 TO-78 7L

Linear Integrated Systems, Inc.

MONOLITHIC DUAL, N-CHANNEL ENHAN

3N190 TO-78 7L is a Transistors - FETs, MOSFETs - Arrays manufactured by Linear Integrated Systems, Inc.. MONOLITHIC DUAL, N-CHANNEL ENHAN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C (TJ), package / case TO-78-7 Metal Can, power - max 525mW (Ta).

Datasheet Request a Quote

In Stock: 196

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	50mA
Rds On (Max) @ Id, Vgs	300Ohm @ 100µA, 20V
Vgs(th) (Max) @ Id	5V @ 10µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	525mW (Ta)
Operating Temperature	-55°C ~ 135°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-78-7 Metal Can
Supplier Device Package	TO-78-7
