Name: SIGC156T60NR2CX1SA4
Brand: Infineon Technologies
SKU: SIGC156T60NR2CX1SA4
Availability: InStock

REF: SIGC156T60NR2CX1SA4 Infineon Technologies

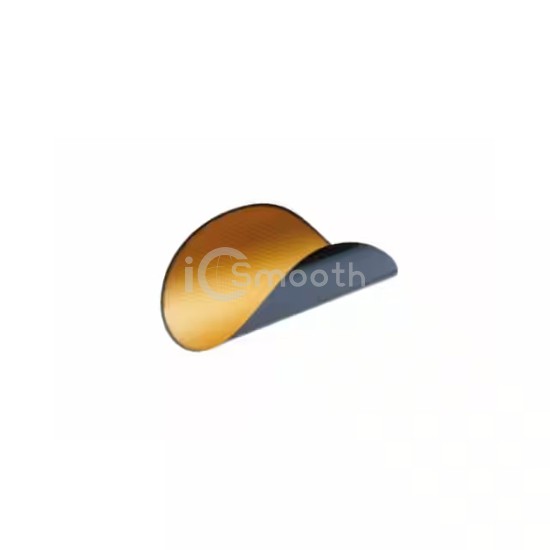

SIGC156T60NR2CX1SA4

IGBT 3 CHIP 600V WAFER

SIGC156T60NR2CX1SA4 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 3 CHIP 600V WAFER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case Die, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 7,269

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	200 A
Current - Collector Pulsed (Icm)	600 A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 200A
Power - Max	-
Switching Energy	-
Input Type	Standard

Gate Charge	-
Td (on/off) @ 25°C	180ns/285ns
Test Condition	300V, 200A, 1.5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
