IKQ100N60TXKSA1

In Stock: 8,458

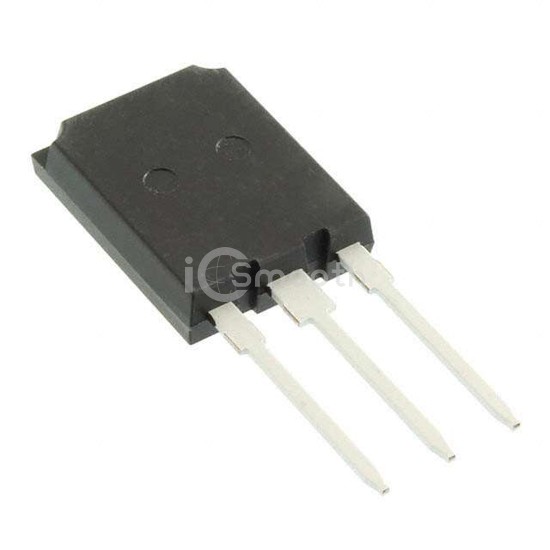

IKQ100N60TXKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKQ100N60TXKSA1 Infineon Technologies
IKQ100N60TXKSA1

Infineon Technologies

IGBT TRENCH/FS 600V 160A TO247-3

IKQ100N60TXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH/FS 600V 160A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 160 A.

Datasheet Request a Quote

In Stock: 8,458

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 100A
Power - Max714 W
Switching Energy3.1mJ (on), 2.5mJ (off)
Input TypeStandard
Gate Charge610 nC
Td (on/off) @ 25°C30ns/290ns
Test Condition400V, 100A, 3.6Ohm, 15V
Reverse Recovery Time (trr)230 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-46
