IKQ40N120CT2XKSA1

In Stock: 264

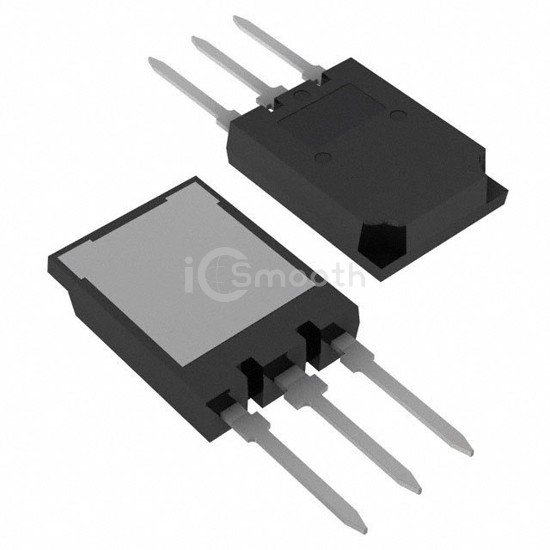

IKQ40N120CT2XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKQ40N120CT2XKSA1 Infineon Technologies
IKQ40N120CT2XKSA1

Infineon Technologies

IGBT TRENCH/FS 1200V 80A TO247-3

IKQ40N120CT2XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH/FS 1200V 80A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 264

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 40A
Power - Max500 W
Switching Energy3.1mJ (on), 2.9mJ (off)
Input TypeStandard
Gate Charge190 nC
Td (on/off) @ 25°C32ns/328ns
Test Condition600V, 40A, 12Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-46
