SIGC03T60EX7SA1

In Stock: 6,644

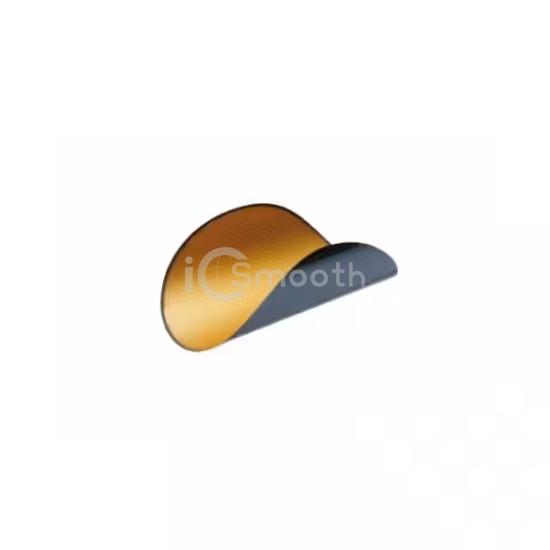

SIGC03T60EX7SA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: SIGC03T60EX7SA1 Infineon Technologies
SIGC03T60EX7SA1

Infineon Technologies

IGBT 3 CHIP 600V 4A WAFER

SIGC03T60EX7SA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 3 CHIP 600V 4A WAFER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case Die, current - collector (ic) (max) 4 A.

Request a Quote

In Stock: 6,644

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)4 A
Current - Collector Pulsed (Icm)12 A
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 4A
Power - Max-
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseDie
Supplier Device PackageDie
