SGW20N60HS

In Stock: 1,770
SGW20N60HS - Infineon Technologies - Transistors - IGBTs - Single
REF: SGW20N60HS Infineon Technologies
SGW20N60HS

Infineon Technologies

IGBT, 36A, 600V, N-CHANNEL

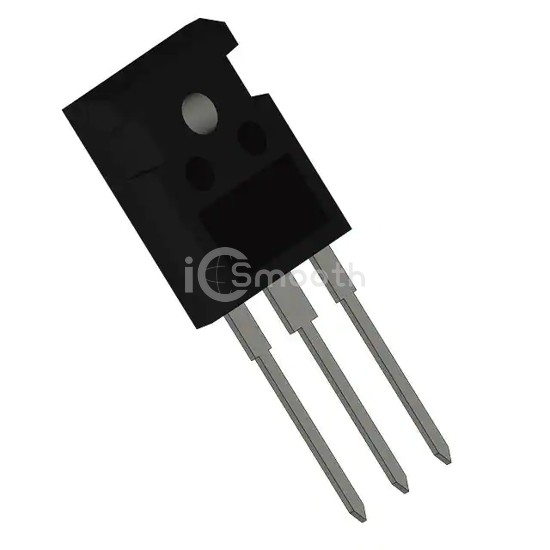

SGW20N60HS is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT, 36A, 600V, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 36 A.

Datasheet Request a Quote

In Stock: 1,770

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)36 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic3.15V @ 15V, 20A
Power - Max178 W
Switching Energy690µJ
Input TypeStandard
Gate Charge100 nC
Td (on/off) @ 25°C18ns/207ns
Test Condition400V, 20A, 16Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-1
