SGW15N120

In Stock: 3,808
SGW15N120 - Infineon Technologies - Transistors - IGBTs - Single
REF: SGW15N120 Infineon Technologies
SGW15N120

Infineon Technologies

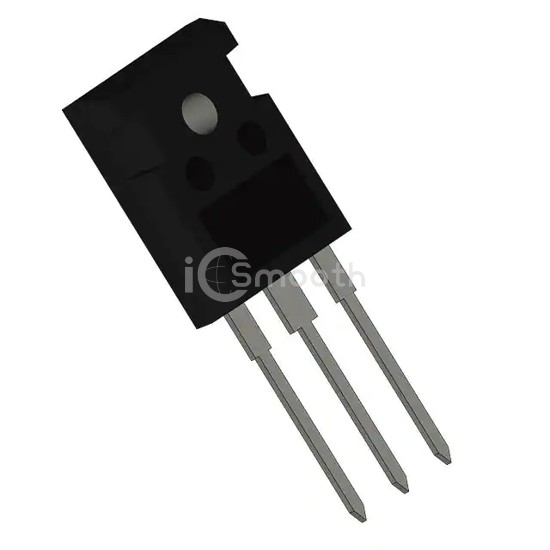

IGBT, 30A, 1200V, N-CHANNEL

SGW15N120 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT, 30A, 1200V, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 3,808

Specifications

17 parameters
Product StatusActive
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Current - Collector Pulsed (Icm)52 A
Vce(on) (Max) @ Vge, Ic3.6V @ 15V, 15A
Power - Max198 W
Switching Energy1.9mJ
Input TypeStandard
Gate Charge130 nC
Td (on/off) @ 25°C18ns/580ns
Test Condition800V, 15A, 33Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-1
