Name: IRLHS6376TR2PBF
Brand: Infineon Technologies
SKU: IRLHS6376TR2PBF
Availability: InStock

REF: IRLHS6376TR2PBF Infineon Technologies

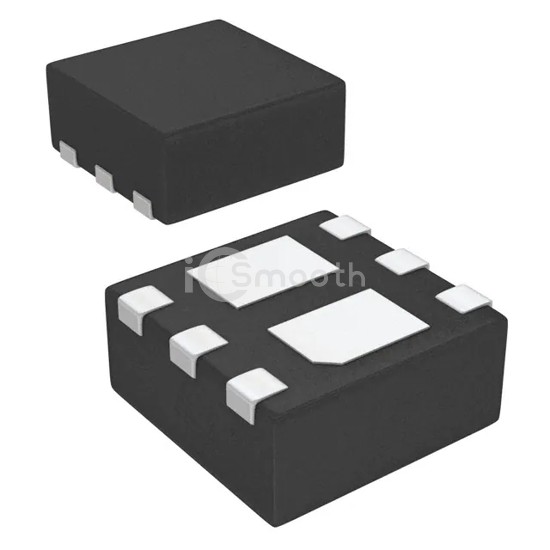

IRLHS6376TR2PBF

MOSFET 2N-CH 30V 3.6A PQFN

IRLHS6376TR2PBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 30V 3.6A PQFN. Key specifications: mounting type Surface Mount, package / case 6-VDFN Exposed Pad, power - max 1.5W.

Datasheet Request a Quote

In Stock: 5,011

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.6A
Rds On (Max) @ Id, Vgs	63mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 10µA

Gate Charge (Qg) (Max) @ Vgs	2.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	270pF @ 25V
Power - Max	1.5W
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-PQFN (2x2)
