IRLHS6276TRPBF

In Stock: 2,232

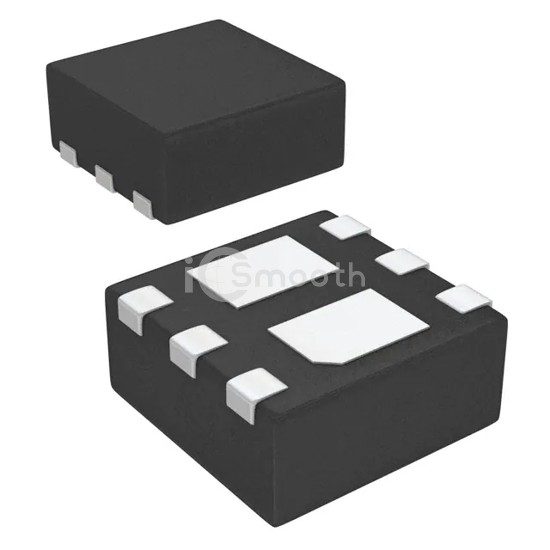

IRLHS6276TRPBF - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: IRLHS6276TRPBF Infineon Technologies
IRLHS6276TRPBF

Infineon Technologies

MOSFET 2N-CH 20V 4.5A PQFN

IRLHS6276TRPBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 20V 4.5A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VQFN, power - max 1.5W.

Datasheet Request a Quote

In Stock: 2,232

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C4.5A
Rds On (Max) @ Id, Vgs45mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs3.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds310pF @ 10V
Power - Max1.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VQFN
Supplier Device Package6-PQFN (2x2)
