IRL6297SDTRPBF

In Stock: 4,775

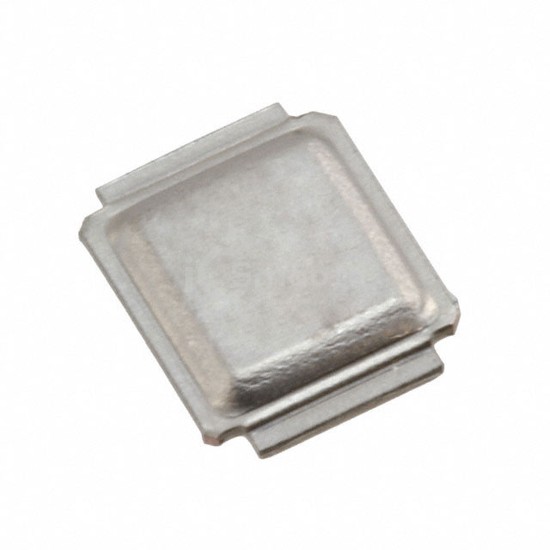

IRL6297SDTRPBF - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: IRL6297SDTRPBF Infineon Technologies
IRL6297SDTRPBF

Infineon Technologies

MOSFET 2N-CH 20V 15A DIRECTFET

IRL6297SDTRPBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 20V 15A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SA, power - max 1.7W.

Datasheet Request a Quote

In Stock: 4,775

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C15A
Rds On (Max) @ Id, Vgs4.9mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 35µA
Gate Charge (Qg) (Max) @ Vgs54nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2245pF @ 10V
Power - Max1.7W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDirectFET™ Isometric SA
Supplier Device PackageDIRECTFET™ SA
