Name: IRGSL15B60KDPBF
Brand: Infineon Technologies
SKU: IRGSL15B60KDPBF
Availability: InStock

REF: IRGSL15B60KDPBF Infineon Technologies

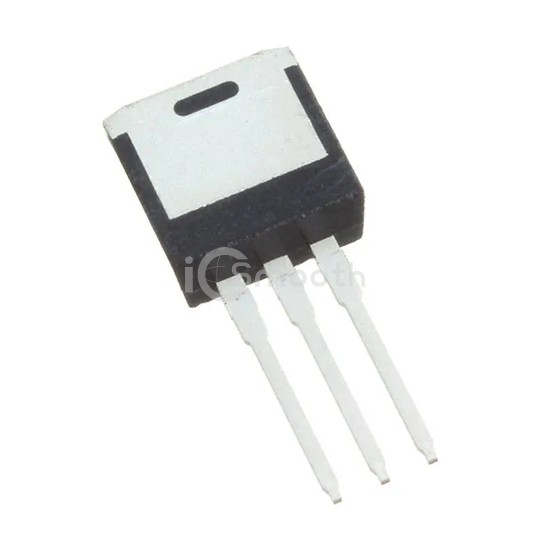

IRGSL15B60KDPBF

IGBT 600V 31A 208W TO262

IRGSL15B60KDPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 31A 208W TO262. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA, current - collector (ic) (max) 31 A.

Datasheet Request a Quote

In Stock: 1,134

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	31 A
Current - Collector Pulsed (Icm)	62 A
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 15A
Power - Max	208 W
Switching Energy	220µJ (on), 340µJ (off)
Input Type	Standard

Gate Charge	56 nC
Td (on/off) @ 25°C	34ns/184ns
Test Condition	400V, 15A, 22Ohm, 15V
Reverse Recovery Time (trr)	92 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	PG-TO262-3
