Name: IRGPS46160DPBF
Brand: Infineon Technologies
SKU: IRGPS46160DPBF
Availability: InStock

REF: IRGPS46160DPBF Infineon Technologies

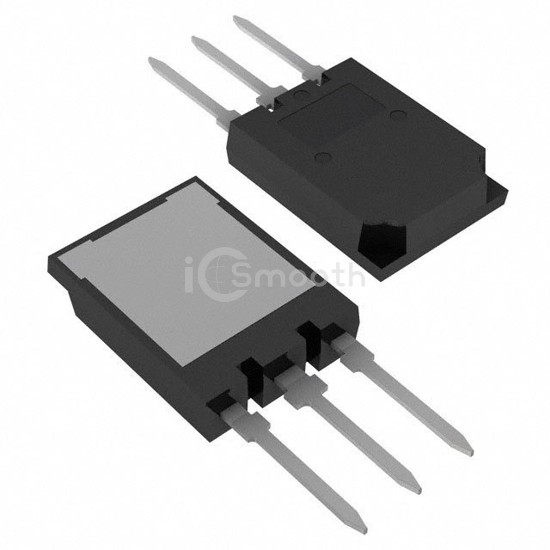

IRGPS46160DPBF

IGBT 600V 240A SUPER247

IRGPS46160DPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 240A SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 240 A.

Datasheet Request a Quote

In Stock: 8,946

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	240 A
Current - Collector Pulsed (Icm)	360 A
Vce(on) (Max) @ Vge, Ic	2.05V @ 15V, 120A
Power - Max	750 W
Switching Energy	5.75mJ (on), 3.43mJ (off)
Input Type	Standard

Gate Charge	240 nC
Td (on/off) @ 25°C	80ns/190ns
Test Condition	400V, 120A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	130 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	SUPER-247™ (TO-274AA)
