Name: IRGP4050
Brand: Infineon Technologies
SKU: IRGP4050
Availability: InStock

REF: IRGP4050 Infineon Technologies

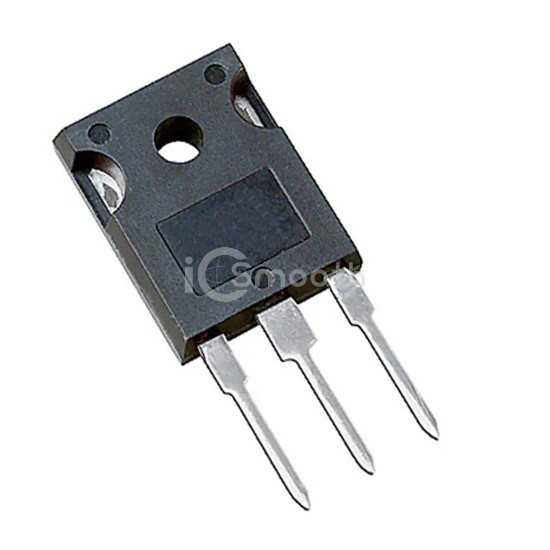

IRGP4050

IGBT 250V 104A 330W TO247AC

IRGP4050 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 250V 104A 330W TO247AC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 104 A.

Datasheet Request a Quote

In Stock: 3,496

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	250 V
Current - Collector (Ic) (Max)	104 A
Current - Collector Pulsed (Icm)	208 A
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 30A
Power - Max	330 W
Switching Energy	45µJ (on), 125µJ (off)
Input Type	Standard

Gate Charge	230 nC
Td (on/off) @ 25°C	37ns/120ns
Test Condition	180V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AC
