Name: IRGP20B120UD-EP
Brand: Infineon Technologies
SKU: IRGP20B120UD-EP
Availability: InStock

REF: IRGP20B120UD-EP Infineon Technologies

IRGP20B120UD-EP

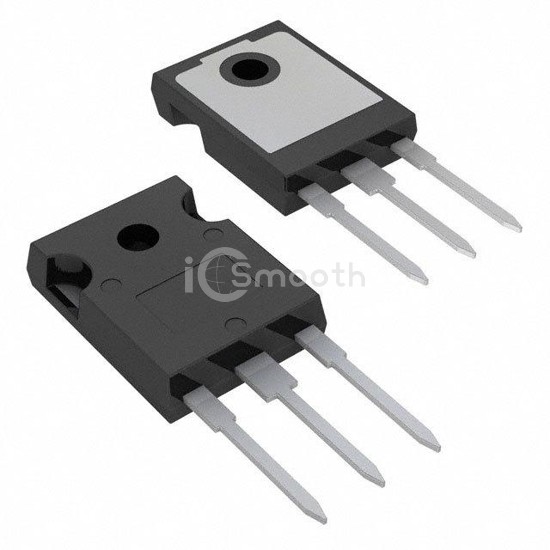

IGBT 1200V 40A 300W TO247AD

IRGP20B120UD-EP is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 40A 300W TO247AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 1,642

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	4.85V @ 15V, 40A
Power - Max	300 W
Switching Energy	850µJ (on), 425µJ (off)
Input Type	Standard

Gate Charge	169 nC
Td (on/off) @ 25°C	-
Test Condition	600V, 20A, 5Ohm, 15V
Reverse Recovery Time (trr)	300 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AD
