Name: IRG8P40N120KDPBF
Brand: Infineon Technologies
SKU: IRG8P40N120KDPBF
Availability: InStock

REF: IRG8P40N120KDPBF Infineon Technologies

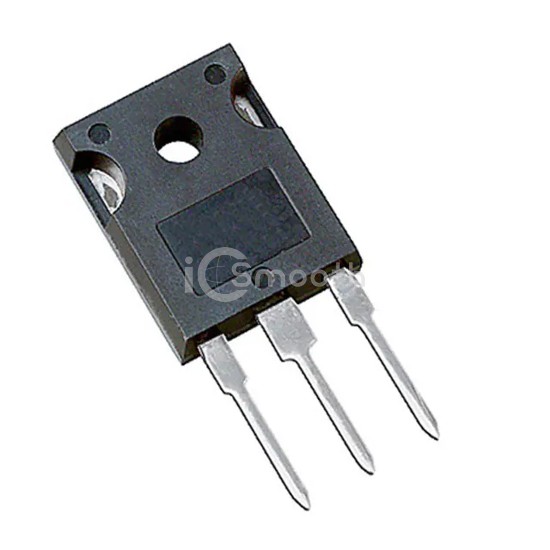

IRG8P40N120KDPBF

IGBT 1200V 60A TO247AC

IRG8P40N120KDPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 60A TO247AC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 9,321

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	75 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 25A
Power - Max	305 W
Switching Energy	1.6mJ (on), 1.8mJ (off)
Input Type	Standard

Gate Charge	240 nC
Td (on/off) @ 25°C	40ns/245ns
Test Condition	600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr)	80 ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AC
