Name: IRG7PSH73K10PBF
Brand: Infineon Technologies
SKU: IRG7PSH73K10PBF
Availability: InStock

REF: IRG7PSH73K10PBF Infineon Technologies

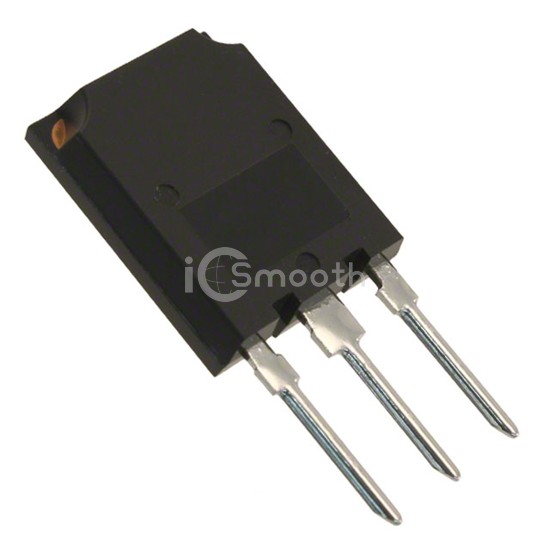

IRG7PSH73K10PBF

IGBT TRENCH 1200V 220A SUPER247

IRG7PSH73K10PBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 1200V 220A SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-274AA, current - collector (ic) (max) 220 A.

Datasheet Request a Quote

In Stock: 1,629

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	220 A
Current - Collector Pulsed (Icm)	225 A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 75A
Power - Max	1150 W
Switching Energy	7.7mJ (on), 4.6mJ (off)
Input Type	Standard

Gate Charge	360 nC
Td (on/off) @ 25°C	63ns/267ns
Test Condition	600V, 75A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
