Name: IRG7PSH54K10DPBF
Brand: Infineon Technologies
SKU: IRG7PSH54K10DPBF
Availability: InStock

REF: IRG7PSH54K10DPBF Infineon Technologies

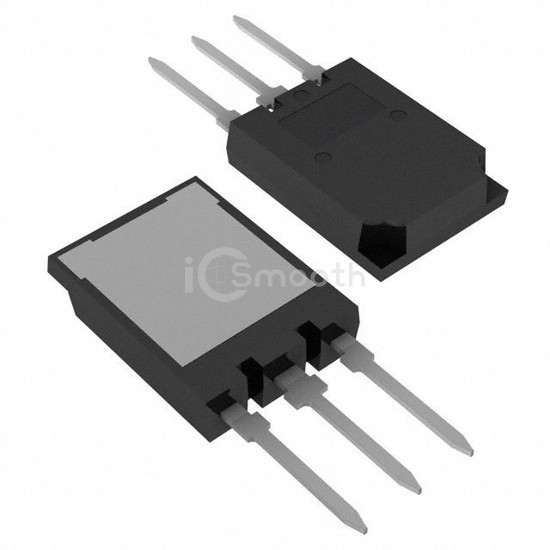

IRG7PSH54K10DPBF

IGBT 1200V 120A 520W TO274AA

IRG7PSH54K10DPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 120A 520W TO274AA. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 120 A.

Datasheet Request a Quote

In Stock: 1,896

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	120 A
Current - Collector Pulsed (Icm)	200 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 50A
Power - Max	520 W
Switching Energy	4.8mJ (on), 2.8mJ (off)
Input Type	Standard

Gate Charge	435 nC
Td (on/off) @ 25°C	110ns/490ns
Test Condition	600V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr)	170 ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	SUPER-247™ (TO-274AA)
