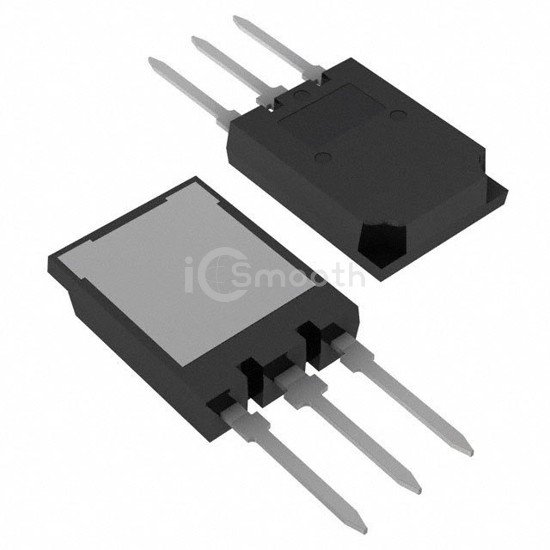

Name: IRG7PSH50UDPBF
Brand: Infineon Technologies
SKU: IRG7PSH50UDPBF
Availability: InStock

REF: IRG7PSH50UDPBF Infineon Technologies

IRG7PSH50UDPBF

IGBT TRENCH 1200V 116A SUPER247

IRG7PSH50UDPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 1200V 116A SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 116 A.

Datasheet Request a Quote

In Stock: 7,057

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	116 A
Current - Collector Pulsed (Icm)	150 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 50A
Power - Max	462 W
Switching Energy	3.6mJ (on), 2.2mJ (off)
Input Type	Standard

Gate Charge	440 nC
Td (on/off) @ 25°C	35ns/430ns
Test Condition	600V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr)	190 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	SUPER-247™ (TO-274AA)
