Name: IRG7PK35UD1PBF
Brand: Infineon Technologies
SKU: IRG7PK35UD1PBF
Availability: InStock

REF: IRG7PK35UD1PBF Infineon Technologies

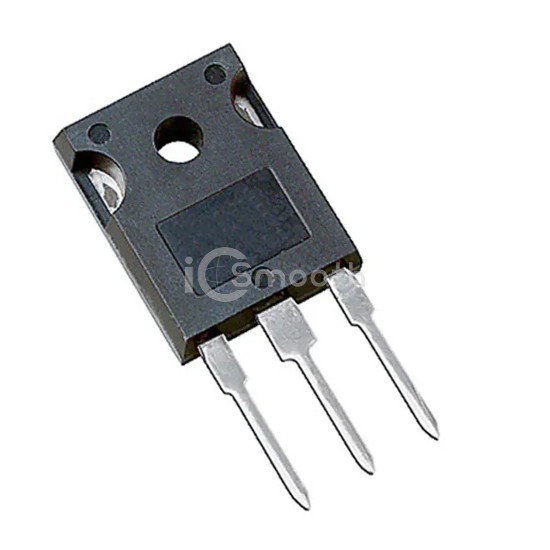

IRG7PK35UD1PBF

IGBT 1400V 40A 167W TO247AC

IRG7PK35UD1PBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1400V 40A 167W TO247AC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 2,151

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1400 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	200 A
Vce(on) (Max) @ Vge, Ic	2.35V @ 15V, 20A
Power - Max	167 W
Switching Energy	650µJ (off)
Input Type	Standard

Gate Charge	98 nC
Td (on/off) @ 25°C	-/150ns
Test Condition	600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AC
