IRG7PH46UDPBF

In Stock: 793
IRG7PH46UDPBF - Infineon Technologies - Transistors - IGBTs - Single
REF: IRG7PH46UDPBF Infineon Technologies
IRG7PH46UDPBF

Infineon Technologies

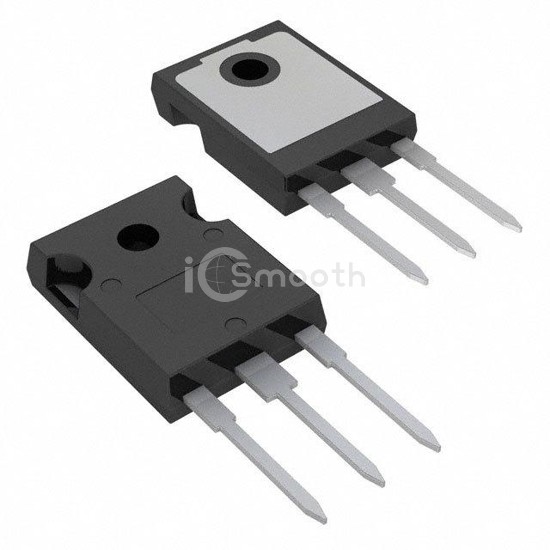

IGBT 1200V 40A 390W TO247AC

IRG7PH46UDPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 40A 390W TO247AC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 793

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
Power - Max390 W
Switching Energy2.61mJ (on), 1.85mJ (off)
Input TypeStandard
Gate Charge220 nC
Td (on/off) @ 25°C45ns/410ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)140 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AC
