Name: IRG7PH46UD-EP
Brand: Infineon Technologies
SKU: IRG7PH46UD-EP
Availability: InStock

REF: IRG7PH46UD-EP Infineon Technologies

IRG7PH46UD-EP

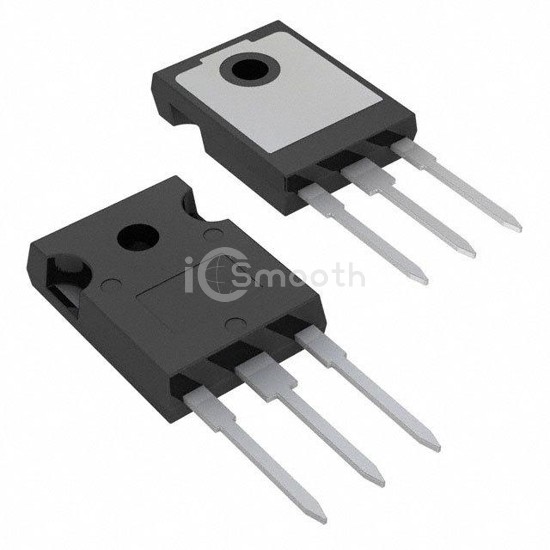

IGBT 1200V 108A COPAK247

IRG7PH46UD-EP is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 108A COPAK247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 5,063

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	160 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 40A
Power - Max	390 W
Switching Energy	2.61mJ (on), 1.85mJ (off)
Input Type	Standard

Gate Charge	220 nC
Td (on/off) @ 25°C	45ns/410ns
Test Condition	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	140 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AD
