Name: IRG4PSH71UDPBF
Brand: Infineon Technologies
SKU: IRG4PSH71UDPBF
Availability: InStock

REF: IRG4PSH71UDPBF Infineon Technologies

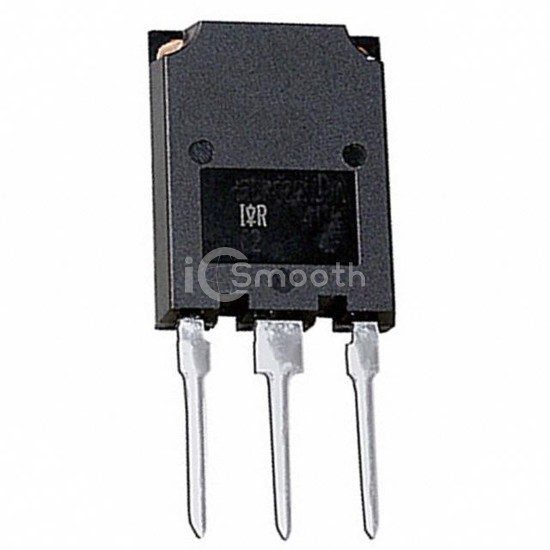

IRG4PSH71UDPBF

IGBT 1200V 99A 350W SUPER247

IRG4PSH71UDPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 99A 350W SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA, current - collector (ic) (max) 99 A.

Datasheet Request a Quote

In Stock: 9,787

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	99 A
Current - Collector Pulsed (Icm)	200 A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 70A
Power - Max	350 W
Switching Energy	8.8mJ (on), 9.4mJ (off)
Input Type	Standard

Gate Charge	380 nC
Td (on/off) @ 25°C	46ns/250ns
Test Condition	960V, 70A, 5Ohm, 15V
Reverse Recovery Time (trr)	110 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
