Name: IRG4PSC71K
Brand: Infineon Technologies
SKU: IRG4PSC71K
Availability: InStock

REF: IRG4PSC71K Infineon Technologies

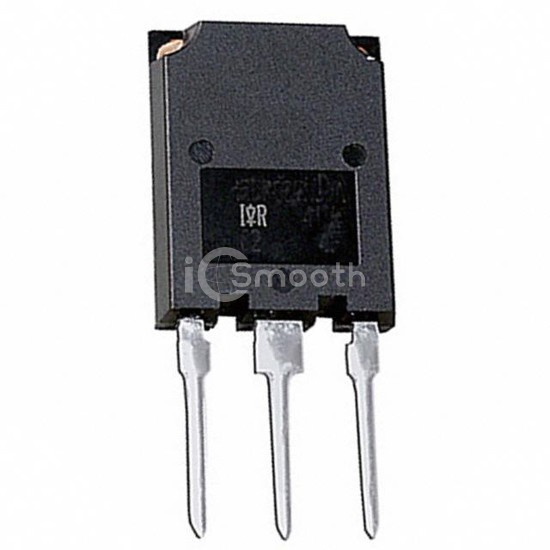

IRG4PSC71K

IGBT 600V 85A 350W SUPER247

IRG4PSC71K is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 85A 350W SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA, current - collector (ic) (max) 85 A.

Datasheet Request a Quote

In Stock: 3,485

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	85 A
Current - Collector Pulsed (Icm)	200 A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 60A
Power - Max	350 W
Switching Energy	790µJ (on), 1.98mJ (off)
Input Type	Standard

Gate Charge	340 nC
Td (on/off) @ 25°C	34ns/54ns
Test Condition	480V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
