Name: IRG4P254SPBF
Brand: Infineon Technologies
SKU: IRG4P254SPBF
Availability: InStock

REF: IRG4P254SPBF Infineon Technologies

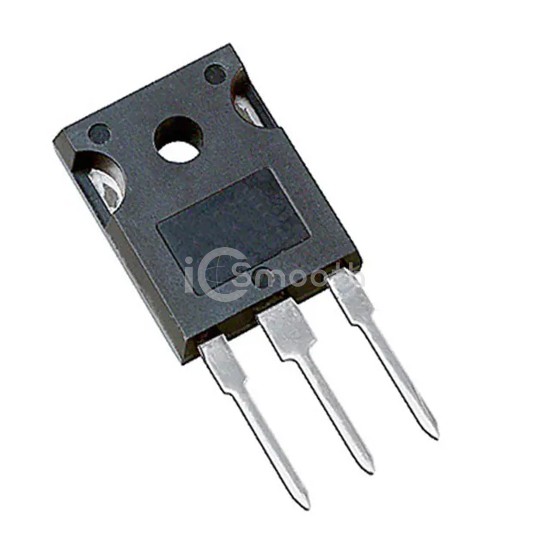

IRG4P254SPBF

IGBT 250V 98A 200W TO247AC

IRG4P254SPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 250V 98A 200W TO247AC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 98 A.

Datasheet Request a Quote

In Stock: 7,065

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	250 V
Current - Collector (Ic) (Max)	98 A
Current - Collector Pulsed (Icm)	196 A
Vce(on) (Max) @ Vge, Ic	1.5V @ 15V, 55A
Power - Max	200 W
Switching Energy	380µJ (on), 3.5mJ (off)
Input Type	Standard

Gate Charge	200 nC
Td (on/off) @ 25°C	40ns/270ns
Test Condition	200V, 55A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AC
