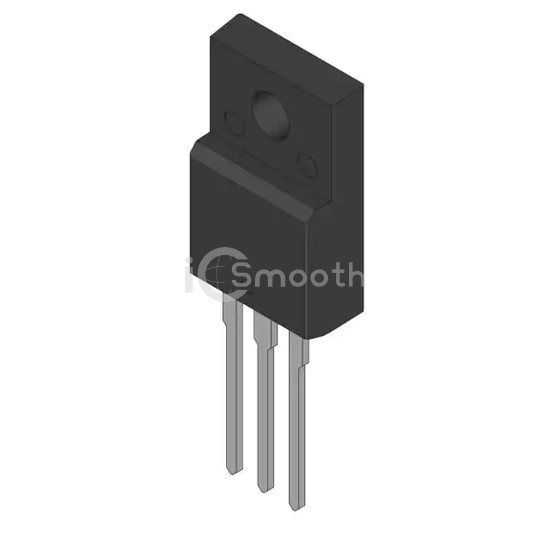

Name: IRG4IBC30KDPBF-INF
Brand: Infineon Technologies
SKU: IRG4IBC30KDPBF-INF
Availability: InStock

REF: IRG4IBC30KDPBF-INF Infineon Technologies

IRG4IBC30KDPBF-INF

COPACK IGBT W/ULTRAFAST SOFT REC

IRG4IBC30KDPBF-INF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. COPACK IGBT W/ULTRAFAST SOFT REC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 17 A.

Datasheet Request a Quote

In Stock: 5,001

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	17 A
Current - Collector Pulsed (Icm)	34 A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 16A
Power - Max	45 W
Switching Energy	600µJ (on), 580µJ (off)
Input Type	Standard

Gate Charge	100 nC
Td (on/off) @ 25°C	60ns/160ns
Test Condition	480V, 16A, 23Ohm, 15V
Reverse Recovery Time (trr)	42 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO220 Full Pack
