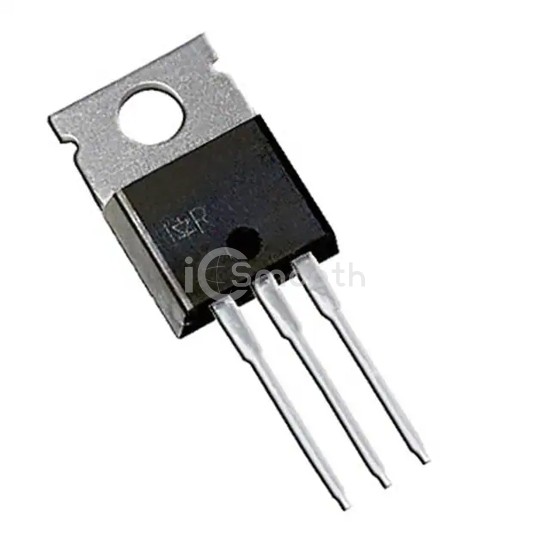

Name: IRG4BC20SPBFXKMA1
Brand: Infineon Technologies
SKU: IRG4BC20SPBFXKMA1
Availability: InStock

REF: IRG4BC20SPBFXKMA1 Infineon Technologies

IRG4BC20SPBFXKMA1

IGBT 600V 19A 60W TO220-3

IRG4BC20SPBFXKMA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 19A 60W TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 19 A.

Request a Quote

In Stock: 4,850

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	19 A
Current - Collector Pulsed (Icm)	38 A
Vce(on) (Max) @ Vge, Ic	1.6V @ 15V, 10A
Power - Max	60 W
Switching Energy	120µJ (on), 2.05mJ (off)
Input Type	Standard

Gate Charge	27 nC
Td (on/off) @ 25°C	27ns/540ns
Test Condition	480V, 10A, 50Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
