Name: IRFI4024H-117P
Brand: Infineon Technologies
SKU: IRFI4024H-117P
Availability: InStock

REF: IRFI4024H-117P Infineon Technologies

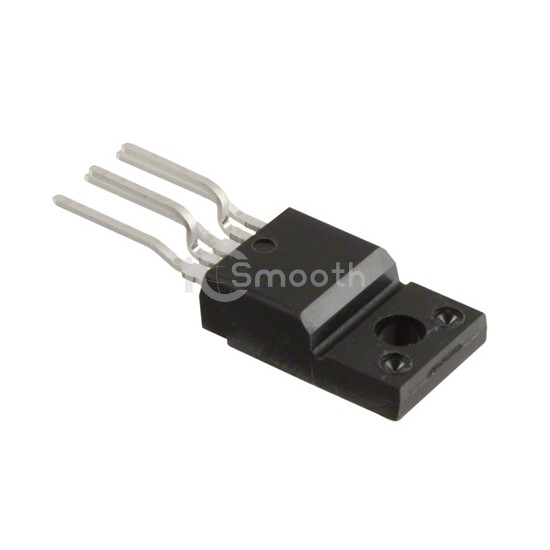

IRFI4024H-117P

MOSFET 2N-CH 55V 11A TO-220FP-5

IRFI4024H-117P is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 55V 11A TO-220FP-5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-5 Full Pack, power - max 14W.

Datasheet Request a Quote

In Stock: 5,887

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	11A
Rds On (Max) @ Id, Vgs	60mOhm @ 7.7A, 10V
Vgs(th) (Max) @ Id	4V @ 25µA

Gate Charge (Qg) (Max) @ Vgs	13nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	320pF @ 50V
Power - Max	14W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-5 Full Pack
Supplier Device Package	TO-220-5 Full-Pak
