Name: IRFI4019HG-117P
Brand: Infineon Technologies
SKU: IRFI4019HG-117P
Availability: InStock

REF: IRFI4019HG-117P Infineon Technologies

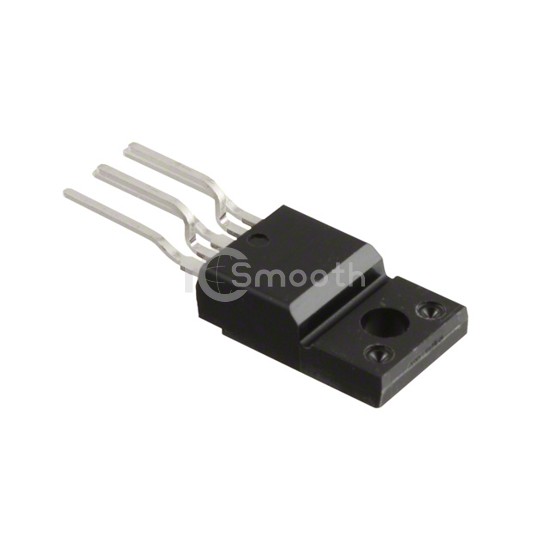

IRFI4019HG-117P

MOSFET 2N-CH 150V 8.7A TO-220FP

IRFI4019HG-117P is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 150V 8.7A TO-220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-5 Full Pack, Formed Leads, power - max 18W.

Datasheet Request a Quote

In Stock: 2,067

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	8.7A
Rds On (Max) @ Id, Vgs	95mOhm @ 5.2A, 10V
Vgs(th) (Max) @ Id	4.9V @ 50µA

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	810pF @ 25V
Power - Max	18W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-5 Full Pack, Formed Leads
Supplier Device Package	TO-220-5 Full-Pak
