Name: IRFHS9351TRPBF
Brand: Infineon Technologies
SKU: IRFHS9351TRPBF
Price: 0.96 USD
Availability: InStock

REF: IRFHS9351TRPBF Infineon Technologies

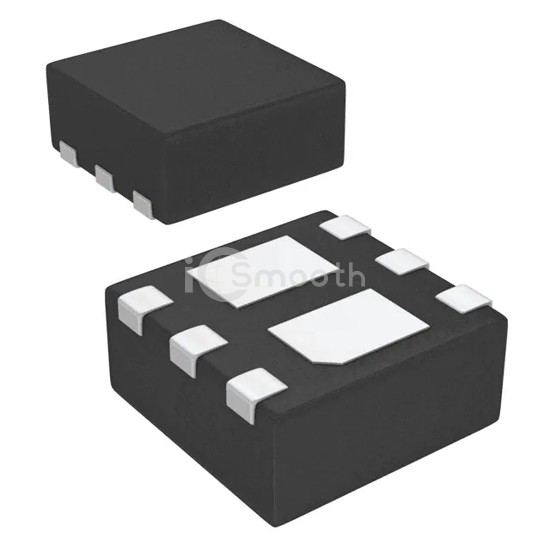

IRFHS9351TRPBF

Infineon Technologies

MOSFET 2P-CH 30V 2.3A PQFN

IRFHS9351TRPBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2P-CH 30V 2.3A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VQFN Exposed Pad, power - max 1.4W.

Datasheet Request a Quote

In Stock: 11,800

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	2.3A
Rds On (Max) @ Id, Vgs	170mOhm @ 3.1A, 10V
Vgs(th) (Max) @ Id	2.4V @ 10µA

Gate Charge (Qg) (Max) @ Vgs	3.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	160pF @ 25V
Power - Max	1.4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VQFN Exposed Pad
Supplier Device Package	6-PQFN (2x2)
