IRF3546MTRPBF

In Stock: 3,000

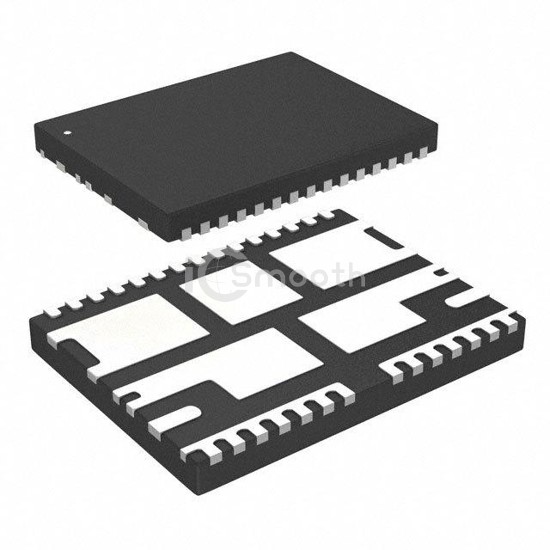

IRF3546MTRPBF - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: IRF3546MTRPBF Infineon Technologies
IRF3546MTRPBF

Infineon Technologies

MOSFET 4N-CH 25V 16A/20A 41PQFN

IRF3546MTRPBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 4N-CH 25V 16A/20A 41PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 41-PowerVFQFN.

Datasheet Request a Quote

In Stock: 3,000

Specifications

14 parameters
Product StatusObsolete
FET Type4 N-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C16A (Tc), 20A (Tc)
Rds On (Max) @ Id, Vgs3.9mOhm @ 27A, 10V
Vgs(th) (Max) @ Id2.1V @ 35µA
Gate Charge (Qg) (Max) @ Vgs15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1310pF @ 13V
Power - Max-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case41-PowerVFQFN
Supplier Device Package41-PQFN (6x8)
