IPG20N06S4L26ATMA1

In Stock: 4,508

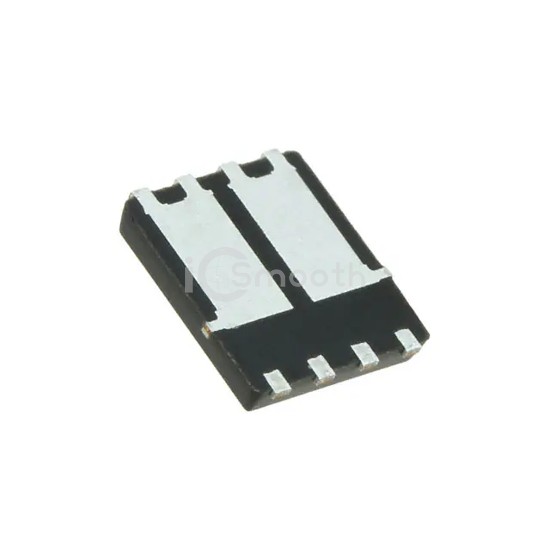

IPG20N06S4L26ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: IPG20N06S4L26ATMA1 Infineon Technologies
IPG20N06S4L26ATMA1

Infineon Technologies

MOSFET 2N-CH 60V 20A TDSON-8

IPG20N06S4L26ATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 60V 20A TDSON-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 33W.

Datasheet Request a Quote

In Stock: 4,508

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs26mOhm @ 17A, 10V
Vgs(th) (Max) @ Id2.2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1430pF @ 25V
Power - Max33W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-4
